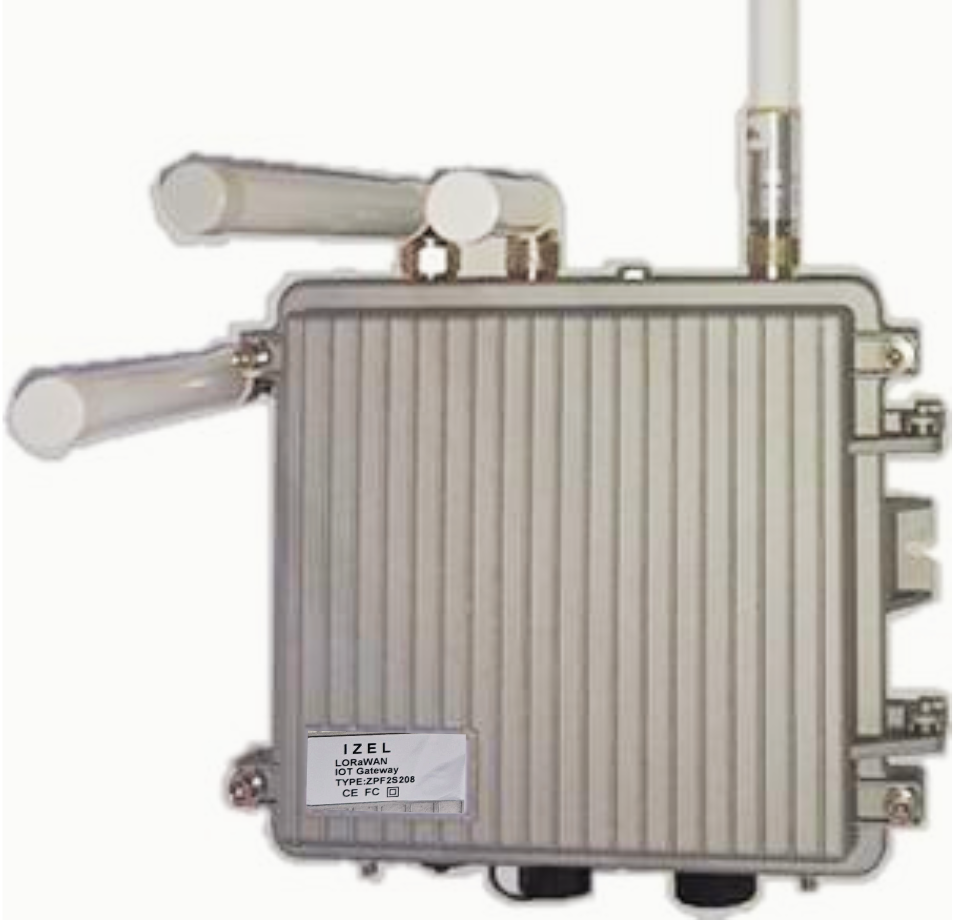

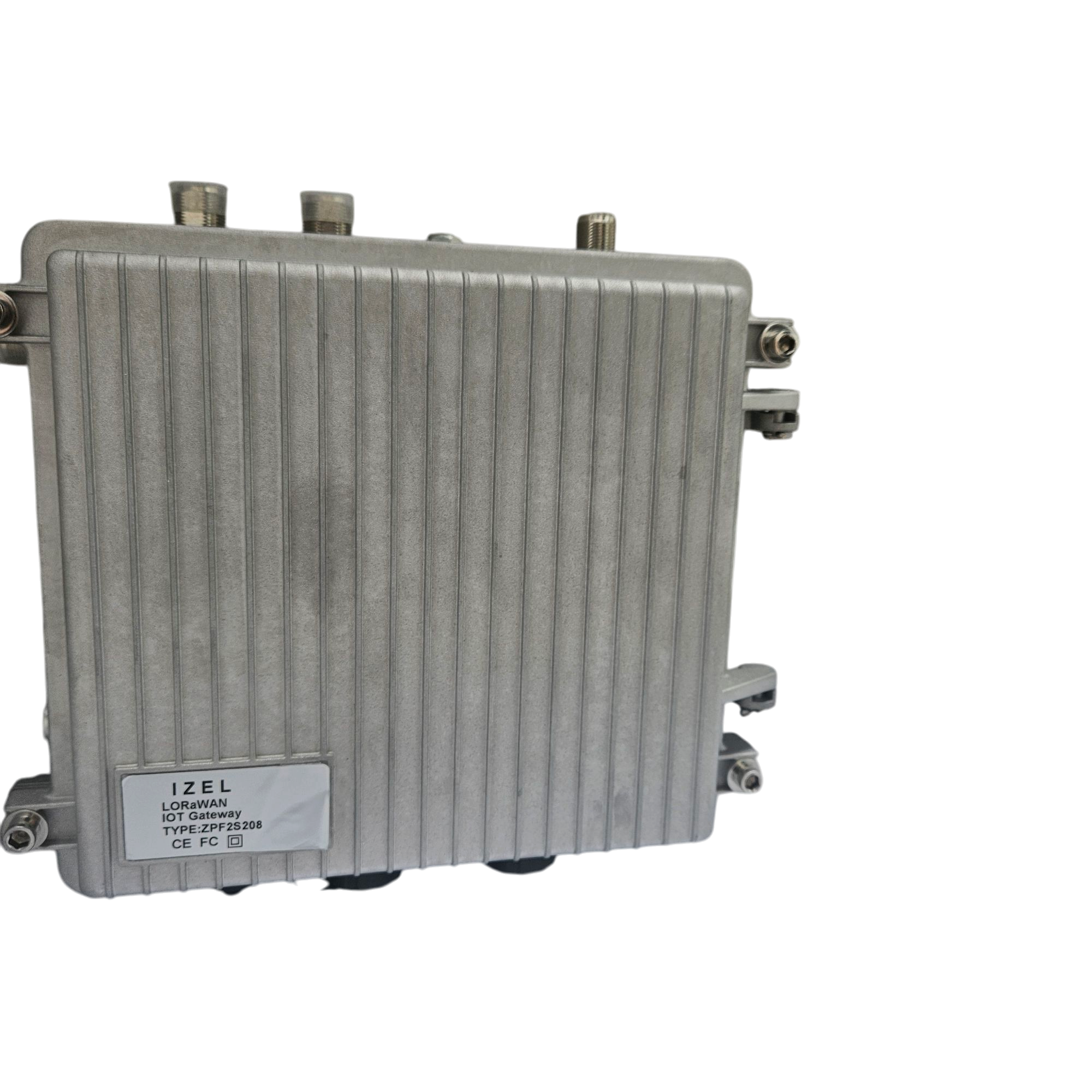

IZEL 4G LoRaWAN Gateway (Outdoor)

IZEL LoRaWAN Gateway – High-Performance Industrial LoRaWAN IoT Gateway

The IZEL LoRaWAN Gateway is a next-generation industrial-grade IoT gateway designed to provide reliable and long-range connectivity for Low Power Wide Area Networks (LPWAN). It supports both half-duplex and full-duplex operation and offers configuration options for 8-channel or 16-channel communication, making it suitable for a wide range of applications in industrial, smart city, and remote monitoring environments.

Advanced Connectivity and High Performance

• Multi-Channel LoRaWAN Support – Handles up to 8 multi-SF LoRa channels, 1 single-SF LoRa channel, and 1 GFSK channel, with an option for 16 channels in the full-duplex model.

• High Sensitivity and Output Power – Achieves receiver sensitivity as low as -141dBm at 300bps and maximum output power of 27dBm, ensuring strong and stable signal reception.

• GPS Synchronization – Built-in GPS module allows for precise timing and synchronization, supporting LoRaWAN Class B protocol.

Reliable and Secure Communication

• Ethernet and 4G LTE Connectivity – Supports both Ethernet (10/100 Mbps) and 4G LTE for seamless connection to cloud servers.

• PoE (Power over Ethernet) Support – Compliant with IEEE 802.3 af/at standards, enabling remote power supply over 100m of cable.

• WiFi Access – Enables secure local login and configuration for quick setup and maintenance.

Built for Harsh Environments

• IP67-Rated Housing – Fully weatherproof and dustproof, making it ideal for outdoor installations.

• Wide Operating Temperature Range – Functions reliably in extreme temperatures from -40°C to +75°C.

• Surge Protection – Withstands surges up to 10kA, protecting against power fluctuations and ensuring long-term stability.

Power and Backup

• Flexible Power Options – Can be powered via DC jack (12V–24V) or PoE.

• Backup Battery (Optional) – Includes a LiFePO4 battery that provides over 4 hours of backup power during outages.

Smart Monitoring and Control

The gateway is equipped with an industrial-grade ARM Cortex-A53 CPU, 1GB RAM, and 4GB eMMC storage, delivering fast processing and secure data handling. Its integrated temperature sensor and internal monitoring system provide real-time status updates and alerts.

Applications

• IoT and LPWAN networks

• Smart city infrastructure

• Industrial automation and monitoring

• Remote environmental sensing

• Smart building and home automation

• Utility and smart metering solutions

The IZEL LoRaWAN Gateway combines high performance with industrial reliability, making it an ideal solution for large-scale IoT deployments and remote monitoring applications.
